Ceramic Fiber Paper
Temp Grade: 1050°C,1260°C,1400°C, 1430°C
Density: 180kg/m₃, 200kg/m₃
Specification:
• 0.5 x610/1200 x 120000mm
• 1 x610/1200 x 60000mm
• 2 x610/1200 x 30000mm
• 3 x610/1200 x 20000mm
• 4×610/1200 x 15000mm
• 5×610/1200 x 12000mm
• 6×610/1200 x 10000mm
• 10×610/1200 x 6000mm
Customized specification is acceptable.
Share
• DESCRIPTION

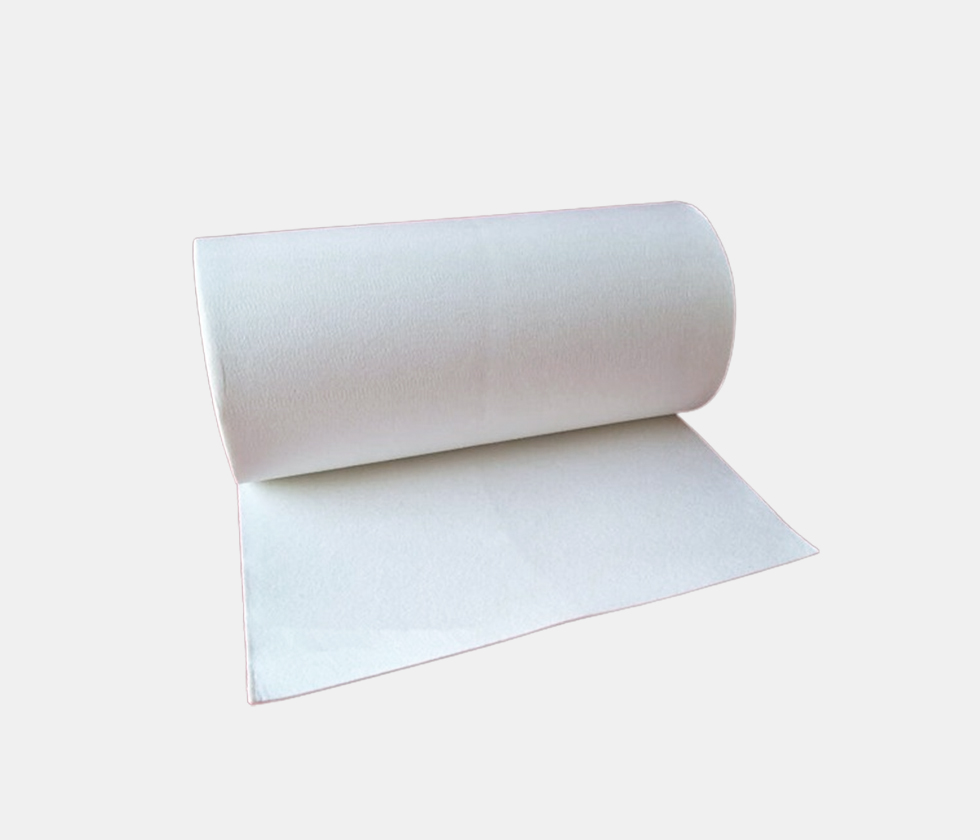

Ceramic fiber paper is made from high-purity raw materials through high-temperature electric melting, followed by high-speed air blowing and fiberization. After wet forming, the fibers are processed into ceramic paper with a specific thickness and strength.
Also known as ceramic paper or ceramic fiber paper sheet, it provides lightweight, flexible, and heat-resistant insulation for various industrial applications. As a professional ceramic fiber paper manufacturer and supplier, Mindelun provides fiber paper sheets and ceramic fiber gasket material for high-temperature sealing, kiln shelf protection, and other insulation applications.
• PROPERTIES
Ø High strength tear resistance.
Ø High flexibility.
Ø Low slag ball content.
Ø Accurate thickness.
Ø Good thermal shock resistance and chemical stability.
Ø Low thermal conductivity.
Ø Environment-protective.
• APPLICATION
Ø High temperature gasket and Ingot die gasket.
Ø Automobile muffler insulation.
Ø Liquid metal insulation.
Ø Induction furnace insulation.
Ø Refractory support material.
Ø Investment casting wrap.
• SPECIFICATION
| Item | Unit | Test Result | Test Result | Test Result | Test Result | |
| 2 | Specification temp | (℃) | 1260(ST) | 1260(HP) | 1360(HA) | 1430(HZ) |
| 3 | Working temperature | (℃) | 1050 | 1100 | 1200 | 1350 |
| 4 | Density | (kg/m3) | 180/200 | 180/200 | 180/200 | 180/200 |
| 5 | Permanent shrinkage Rate of liner (24h, density 200kg/m3) | (%) | -3 | -3 | -3 | -3 |
| (1000℃） | (1100℃） | (1200℃） | (1350℃） | |||
| 6 | Thermal conductivity of each heat surface(density 200kg/m3) | （W/m.k) | 0.1(400℃） | 0.1(400℃） | 0.1(400℃） | 0.1(400℃） |
| 0.12（800℃） | 0.12（800℃） | 0.13（800℃） | 0.19（800℃） | |||
| 7 | Moisture content | (%) | ≤1% | ≤1% | ≤1% | ≤1% |
| 8 | Compression strength (density 200kg/m3) | (Mpa) | ≧0.3 | ≧0.3 | ≧0.3 | ≧0.3 |
| 9 | Shot contenT | (%) | ≤10% | ≤10% | ≤10% | ≤10% |
| 10 | Al2O3 | (%) | ≧43 | ≧45 | ≧52 | ≧35 |
| 11 | Al2O3+SiO2 | (%) | 97 | 97 | 97 | 97 |
| 12 | Fe2O3 | (%) | ＜1.0 | ＜1.0 | ＜1.0 | ＜1.0 |
| 13 | Na2O+K2O | (%) | ＜0.5 | ＜0.5 | ＜0.5 | ＜0.5 |
| 14 | Aluminum foil thickness | (mm) | 0.05-0.1 | |||
| 15 | Aluminum foil radiation heat rate | (%) | ≧80 | |||
| 16 | Thickness | (mm) | 0.5/1/2/3/4/5/6/10 | |||
| 17 | Width | (mm) | 500/610/1000/1200/1220 | |||
| 18 | Length | (mm) | 10000/12000/15000/20000/30000/60000/120000 | |||
Ceramic Fiber Paper FAQ
1. What is Ceramic Fiber Paper?
Ceramic Fiber Paper is a lightweight, flexible high-temperature insulation material made from ceramic fibers with a controlled binder content. It provides low thermal conductivity, low heat capacity, good thermal stability, and easy cutting for industrial insulation and sealing applications.
2. What is Ceramic Fiber Paper used for?
Ceramic Fiber Paper is widely used for high-temperature insulation, furnace and kiln insulation, heating element insulation, expansion joints, thermal sealing, automotive heat shields, and ceramic fiber gasket production.
3. What are the advantages of Ceramic Fiber Insulation Paper?
Ceramic Fiber Insulation Paper offers low thermal conductivity, low heat storage, good thermal shock resistance, flexibility, and uniform thickness. It can be easily cut, die-cut, laminated, wrapped, or fabricated into custom insulation and sealing components.
4. What temperature can Ceramic Fiber Paper withstand?
The temperature rating depends on the fiber grade and formulation. Common grades include 1260°C, 1350°C, 1400°C, and 1430°C classification temperatures. The recommended continuous operating temperature may be lower and should be selected according to the actual application.
5. Is Mindelun a Ceramic Fiber Paper Manufacturer?
Yes. Mindelun is a Ceramic Fiber Paper Manufacturer in China, supplying ceramic fiber paper for high-temperature insulation, industrial sealing, gasket fabrication, automotive applications, furnaces, and thermal equipment.
6. Is Mindelun a Ceramic Fiber Paper Supplier in China?
Yes. As a Ceramic Fiber Paper Supplier in China, Mindelun provides factory-direct B2B supply for distributors, wholesalers, contractors, manufacturers, and industrial customers. We support samples, bulk orders, and container shipments.
7. Does Mindelun have a Ceramic Fiber Insulation Paper Factory?
Yes. Mindelun operates as a Ceramic Fiber Insulation Paper Factory supporting standard and customized production. Customers can source ceramic fiber insulation paper directly from the factory according to required specifications and quantities.
8. Can Mindelun provide Custom Ceramic Fiber Paper?
Yes. As a Custom Ceramic Fiber Paper Manufacturer, Mindelun can customize thickness, width, length, density, temperature grade, cutting, die-cut shapes, roll sizes, packaging, and other specifications according to customer requirements.
9. Does Mindelun provide OEM Ceramic Fiber Paper?
Yes. Mindelun provides OEM Ceramic Fiber Paper for distributors, manufacturers, wholesalers, and industrial buyers. OEM services can include customized dimensions, packaging, labeling, private-label products, and custom gasket shapes.
10. Can Ceramic Fiber Paper be used for gaskets and automotive applications?
Yes. Ceramic Fiber Paper for gaskets can be die-cut into custom shapes for high-temperature sealing applications. It is also suitable for automotive heat shields, exhaust systems, thermal barriers, and other components requiring thin, flexible insulation.
11. Can I buy Ceramic Fiber Paper wholesale?
Yes. Mindelun provides Ceramic Fiber Paper wholesale supply for distributors, wholesalers, contractors, manufacturers, and industrial project customers. Sample, bulk, and container orders are available according to product specifications and quantities.
12. What information is needed for a Ceramic Fiber Paper quotation?
For an accurate quotation from a Ceramic Fiber Paper Supplier, please provide:
- Working temperature
- Thickness and density
- Width and roll length
- Application
- Required quantity
- Gasket or die-cut requirements
- Packaging or OEM requirements
- Delivery destination
As a Ceramic Fiber Paper Manufacturer and Supplier in China, Mindelun can recommend suitable specifications based on your application and purchasing requirements.
